Joerns Oxford®

Oxford Midi 180 Mobile Hoist

SKU: F25005
Regular price £895.99 VAT Exempt
In stock
Delivered from our UK warehouses
Select Type
VAT

Delivery options for this product

Call us on 0300 100 0248 for help if delivery looks unavailable to your address.

More delivery information is available here.

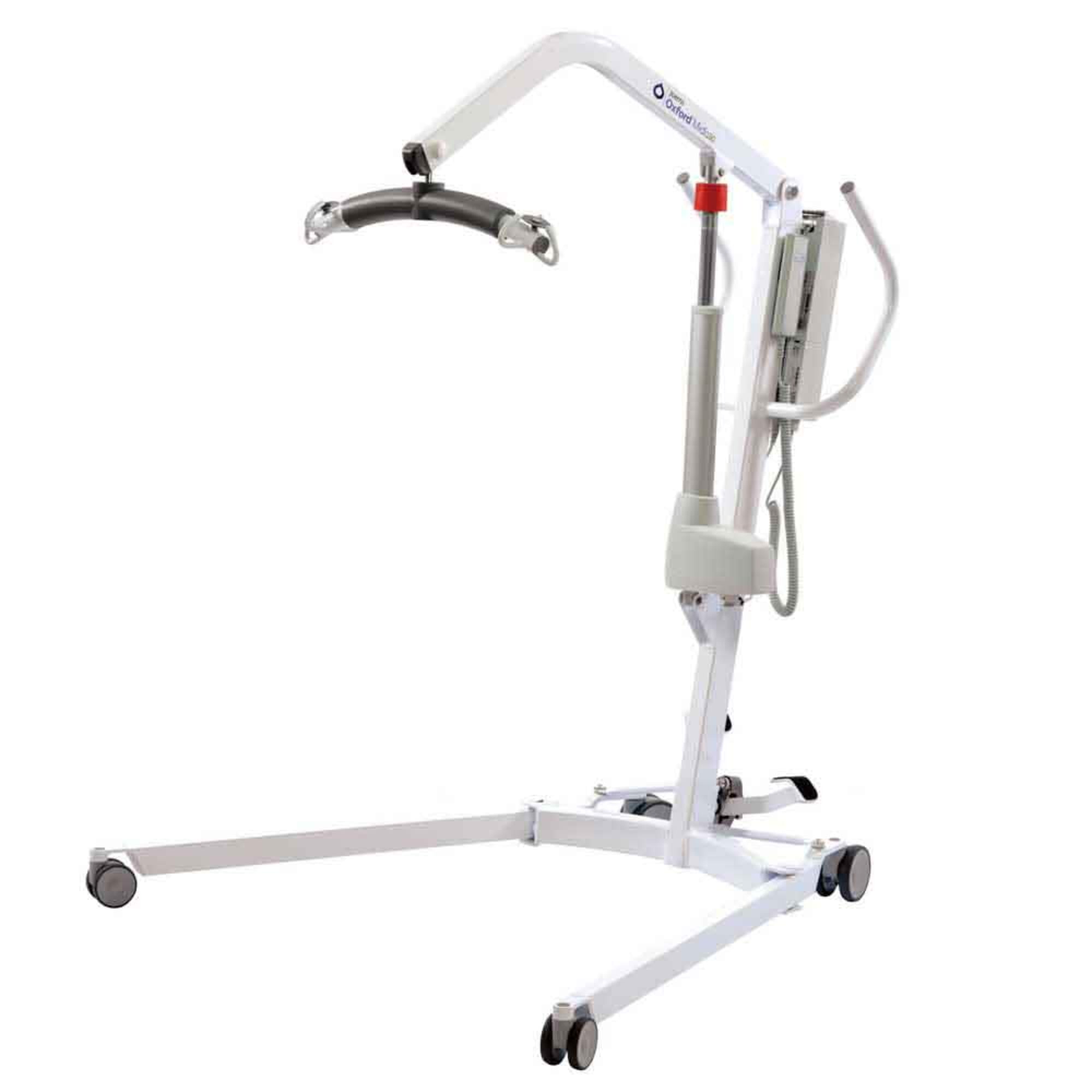

The Oxford Midi 180 Electric Hoist offers outstanding performance and is an excellent addition to community and nursing environments where space constraints may cause issues.

Great features:

  • 2-point spreader bar
  • LCD Battery level indicator
  • High-grade, easy-push castors
  • Low profile for clearance under most furniture
  • Braked rear castors for added safety
  • Detachable battery pack

Navigates tight spaces

The legs on the Oxford Midi 180 Electric Hoist are adjustable, using an ergonomic foot pedal, and lock into position to avoid accidental opening. This mechanism has a latch/lock feature, so the legs can be opened or closed to gain easy access around objects like beds, chairs and wheelchairs.

Convenient and safe to use

This high-quality hoist features Smart™ Monitor diagnostic and service controls as standard, with a safe working load of 180kg (28 stone). The handheld controller promotes independent patient use, so the carer can free both hands to provide support.

The Oxford Midi has an excellent emergency lift – a spring-loaded mechanical lowering device that will only operate under load. The device must be twisted by hand to activate a slow and safe descent.

This hoist has an angled boom to assist with lifting from the floor and a large push handle that makes it easy to manoeuvre. It also features a detachable battery pack and desktop charger. The spreader bar is padded for additional patient safety, and the hoist is available in three spreader bar sizes.

Optional Class III digital weigh-scale, and available with an electric leg option. Available in electric or hydraulic versions.

Please note:

Sling is not included and would need to be purchased separately.

Before its first use, the hoist must be assembled and commissioned by a ‘competent person’ to establish the assembly was correct and safe. All patient lifting equipment needs to be LOLER (Lifting Operations and Lifting Equipment Regulations 1998) tested every 6 months.


Specifications for item code: F25005
Oxford Midi 180 Electric Hoist - Electric
Overall dimensions:
Length: 1225mm (48")
Height: 1240mm (49") - 1840mm (72")
Spreader bar dimensions:
Height: 525mm (21") - 1660mm (65")
Height at maximum reach: 1060mm (42")
Reach from centre of spreader bar to front of mast at maximum height: 420mm (16.5")
At Minimum height: 440mm (17.5")
Maximum Reach: 656mm (26")
Turning Radius: 1235mm (49")
Legs Open measurements:
External Width: 1170 mm (46")
Internal Width: 1070mm (42")
Legs Closed measurements:
External Width: 600mm (24")
Internal Width: 540mm (21")
Overall Height of Legs: 100mm (4")
Ground Clearance: 25mm (1")
Front Twin Castors: 75mm (3")
Rear Braked Castors: 100mm (4")
Weights:
Mast & Boom Inc. all fixings: 20.5kg (45 lbs)
Base Assembly: 11.5kg (25 lbs)
Assembled Unit: 32kg (70 lbs)
Battery: 2.9kg (6.5 lbs)
Battery type: 2 x 12v rechargeable
Battery capacity: 3.2 amp per hour
Maximum user weight: 180kg (28 st)
