Joerns Oxford®

OXFORD Major 200 Hoist

SKU: F21176
Regular price £1,313.33 VAT Exempt
In stock
Delivered from our UK warehouses
Select Type
VAT

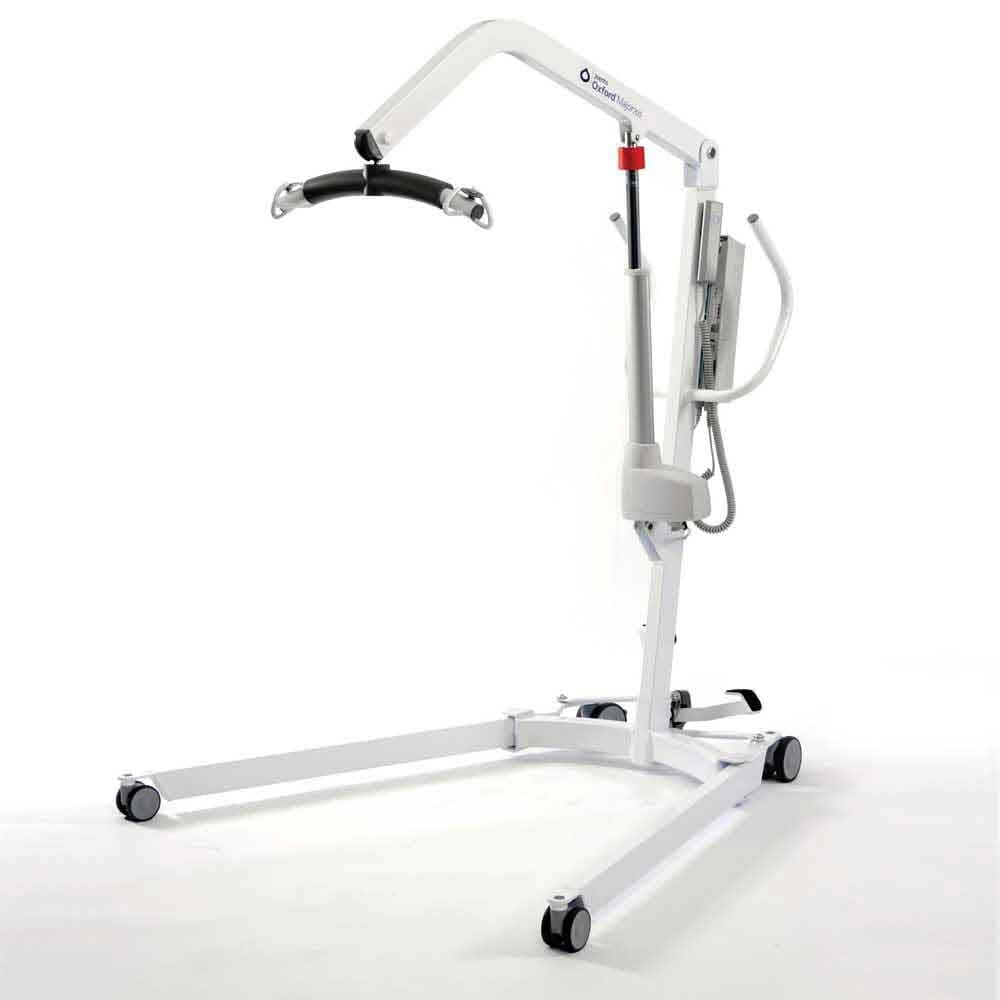

The Oxford Major 200 Electric Hoist has been designed to cope with most lifting situations in nursing and institutional care environments.

Its very high lifting capacity of 200kg (31 stone) and lightweight construction allows the Oxford Major 200 Electric Hoist to work well in almost all settings. This excellent hoist, from a leading manufacturer, features an emergency lift and lower function and a manual leg spreader.

The removable battery pack allows safe recharging of the battery away from the hoist and is equipped with an on-board Smart™ Monitor diagnostic control box which offers an LCD battery level indicator along with operational and service information. Easy push, low profile Tente castors provide clearance under most furniture and over a variety of surfaces, with the rear castors being braked for added safety during use.

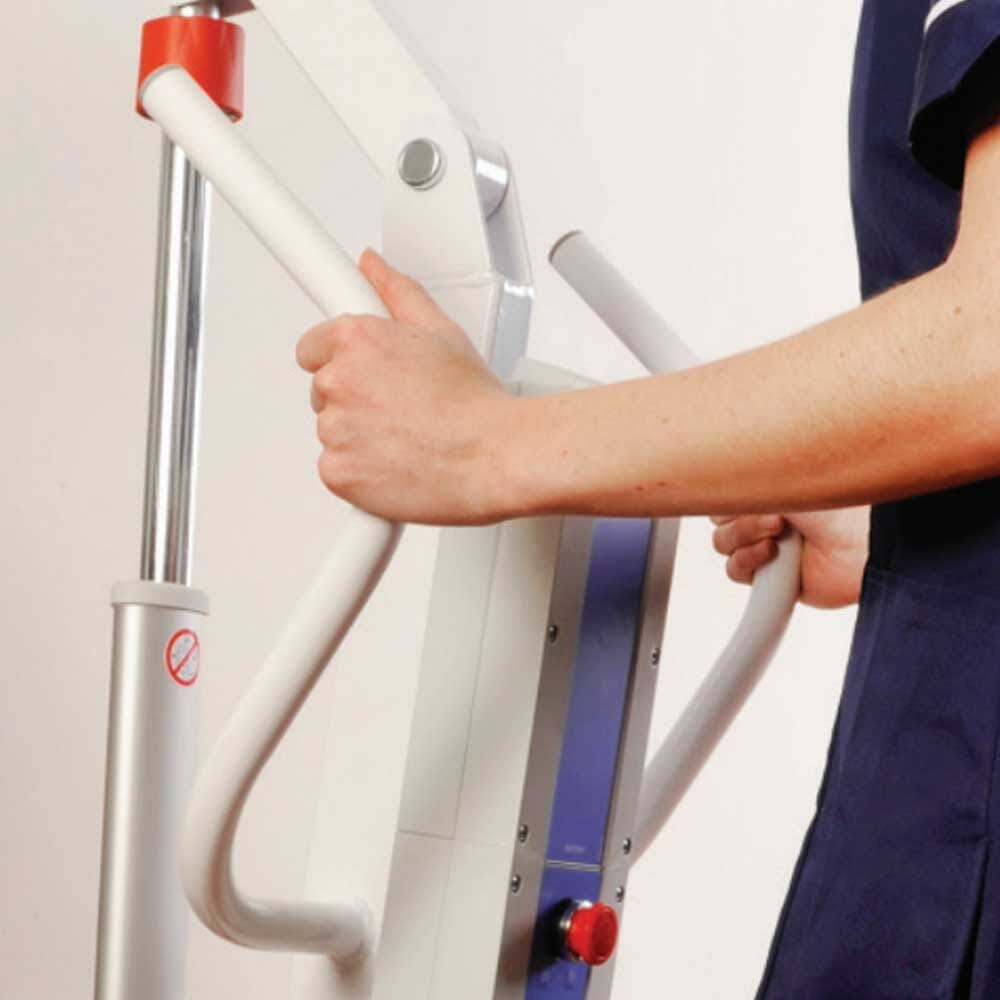

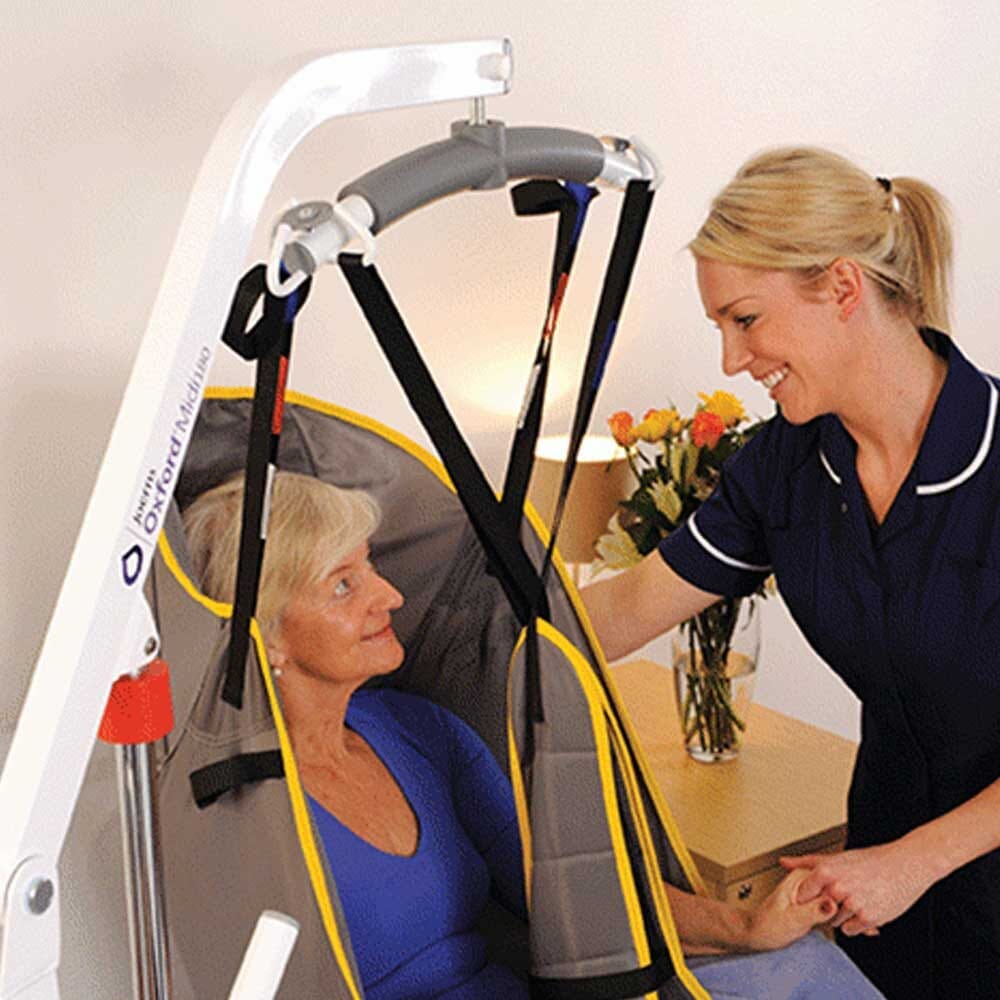

The Oxford Major 200 Electric Hoist has an angled boom to assist with lifting from the floor, and a large push handle that helps steer the hoist with ease. The hand held control promotes independent patient use so the carer has both hands free to provide support. The spreader bar is available in a choice of three sizes, and is padded for even more patient safety.

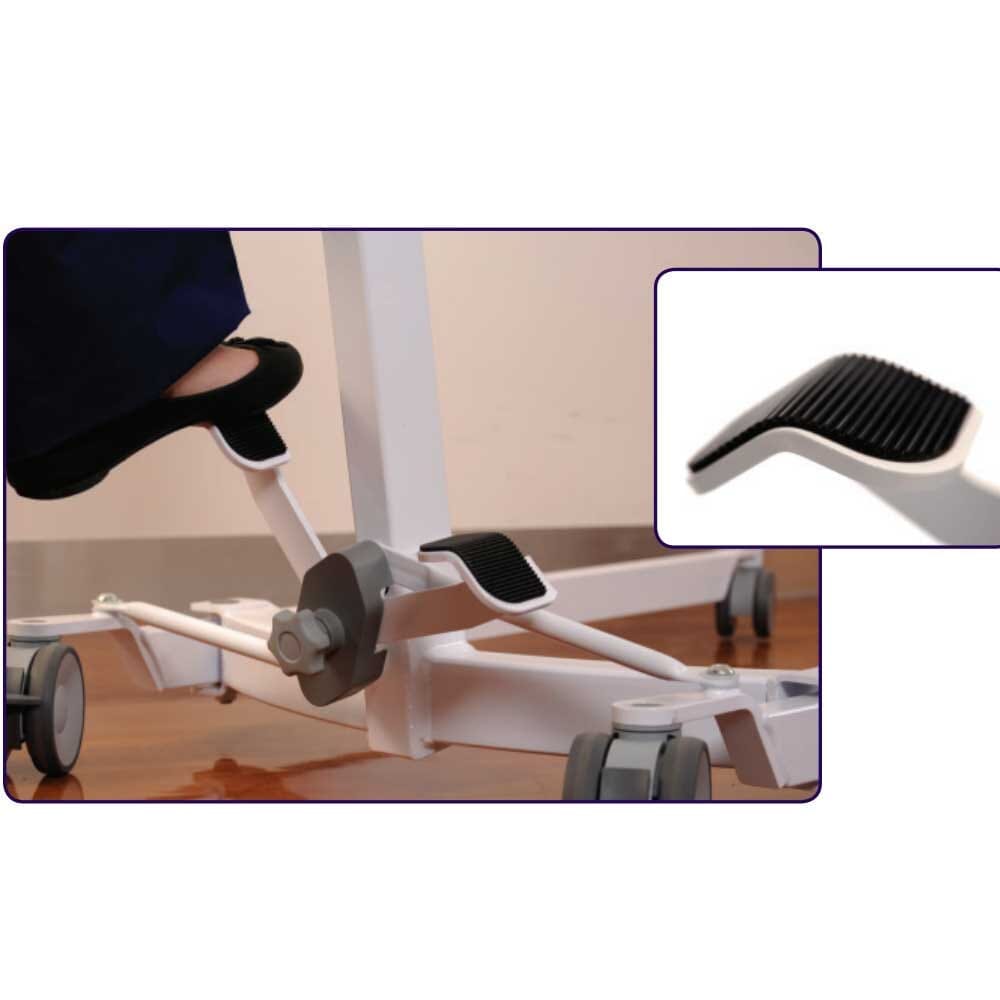

The foot pedal leg opening mechanism features a latch/lock functionality, and an electric leg option is available. With an optional Class III digital weigh-scale, and also available in electric or hydraulic versions.

This item is held in stock and is usually available for NEXT DAY delivery to most parts of Mainland UK, please call for details.

Please note: Sling is not included and would need to be purchased separately.
Before its first use the hoist must be assembled and commissioned by a ‘competent person’, to establish the assembly was correct and safe. Should you not have this facility please ensure the White Glove Service option above is selected. All patient lifting equipment needs to be LOLER (Lifting Operations and Lifting Equipment Regulations 1998) tested every 6 months. If this is required, please add to your order below. This can also be ordered separately by quoting Product Code S03424 at any time.

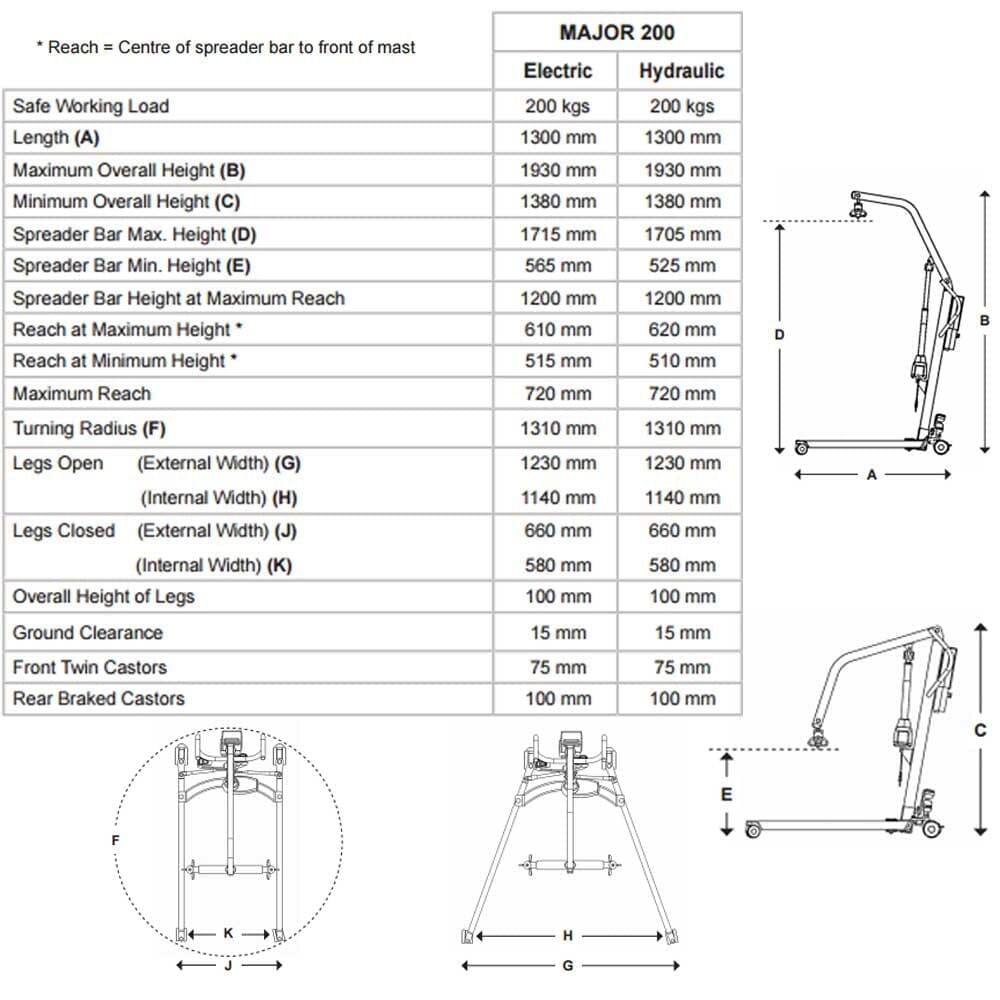

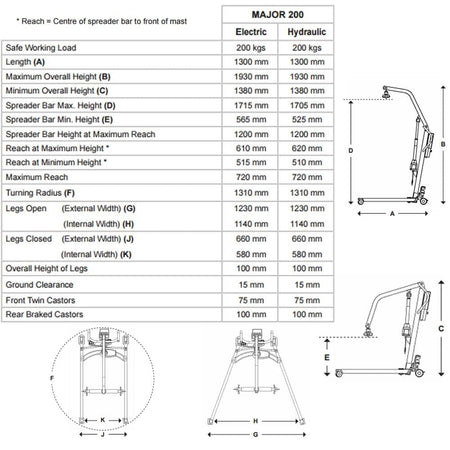

Specifications for item code: F21176
OXFORD Major 200 Hoist - Electric
One OXFORD Major 200 Electric Hoist
Maximum length: 1300mm (51")
Maximum overall height: 1930mm (76")
Minimum overall height: 1380mm (54.3")
Maximum Spreader Bar Height: 1725mm (68")
Minimum Spreader Bar Height: 525mm (20.7")
Spreader Bar Height at Maximum Reach: 1200mm (47.25")
Spreader Bar Reach at Maximum Height: 630mm (24.8")
Spreader Bar Reach at Minimum Height: 490mm (19.3")
Maximum Reach: 720mm (28.3")
Turning Radius: 1310mm (51.6")
Legs open external width: 1230mm (48.5")
Legs open internal width: 1140mm (44.9")
Legs closed external width: 660mm (26")
Legs closed internal width: 580mm (22.8")
Overall height of legs: 100mm (3.9")
Ground clearance: 15mm (0.6")
Front twin castors: 75mm (3")
Rear Braked castors: 100mm (3.9")
Battery type: 1 x 12v rechargeable
Battery capacity: 3.2 amp per hour2 point spreader bar
On Board Smart Monitor with battery level indicator
Desktop charger
Weight of Mast and Boom Assembly: 23 kgs
Weight of Base Assembly: 19 kgs
Overall Weight: 42 kgs
Maximum user weight: 200 kgs (31 st)
